Pompetravaini TRV Single Stage Liquid Ring Pumps | 2000 m3/h, 33 mbar

Ask a Question Ask a Question Download Brochure Download Brochure

Overview

Pompetravaini TRV Single Stage Liquid Ring Pumps | 2000 m3/h, 33 mbar

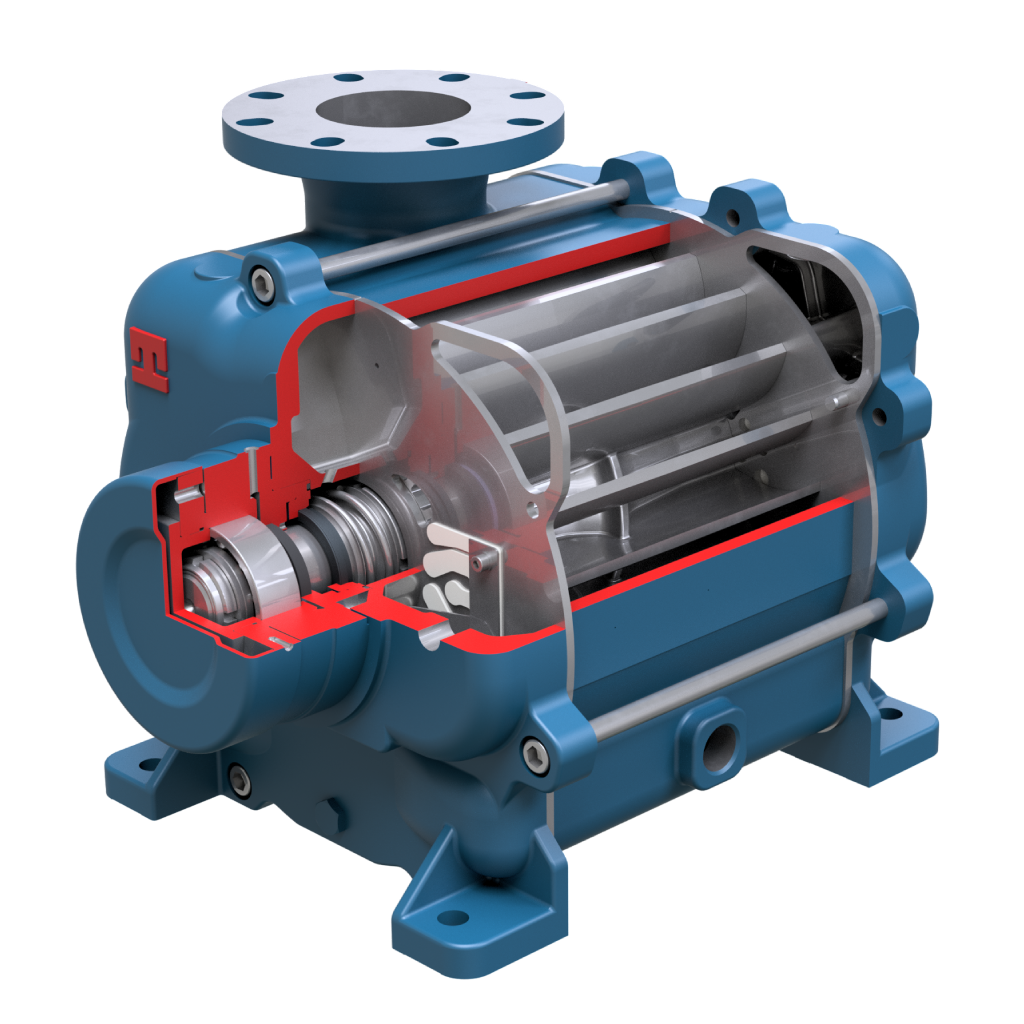

Single-stage liquid ring vacuum pumps

The TRVX series of single-stage valved liquid ring vacuum pumps introduces an innovative project, new performance, greater reliability and is the result of Pompetravaini's experience and feedback from end users. The result is a milestone in the design and production of liquid ring vacuum pumps, offering tangible benefits to users.

Pompetravaini liquid ring pumps

Pompetravaini is one of the leading worldwide manufacturers of liquid ring pumps with single stage and two stage pump series. With the experience acquired through decades of engineering research, continual investments in the latest technology advanced machinery, and sound mechanical know-how, Pompetravani's product is today synonymous with high quality, high efficiency, robust construction and maximum reliability.

Technical Details

The new hydraulic profile allows a performance increase over 10% than the traditional liquid ring vacuum pump designs. Increases the efficiency and operational cost savings all over the entire pump life.
The pump weight is average 30% less compared with the traditional liquid ring vacuum pump designs with compact supporting components dimensions. This advantage allows installation and transportation costs saving.
Compact dimensions and volume (L x W x H) 50% less compared with the traditional liquid ring vacuum pump designs. Optimization of factory or plant installation spaces and related costs saving.
Single and direct service liquid connection. Easy pump fitting without the use of complicate piping. This ensures a fast and economic pump installation.
Central body impeller housing with integrated suction and discharge manifolds with compact overall dimensions. This feature reduces pump components and increases robustness. The maintenance and assembly time and costs saving result to be greatly advantaged.
The suction and discharge port plates are always in stainless steel allowing a greater reliability trough the time and ensuring stable performances. They never require to be replaced during ordinary maintenance reducing down the spare parts cost.
Capacity up to 2000 m3/h and vacuum up to 33 mbar.

Quality

Designed and manufactured under the ISO 9001 standards, all components are guaranteed for the selected materials, workmanship and performance through scrupulous inspections during production stages and final testing of the finished product.

Fewer Components

Through the engineered design innovations and cooperation with the finest technologically advanced foundries, the pumps are the manufactured with less components than typically required. Fewer parts add to the rigidity and toughness of the pumps, they are easier to assemble and maintenance is greatly facilitated.

Compact dimensions

The conventional stuffing boxes construction is eliminated with the Pompetravaini standard design. The shaft length is greatly reduced thus eliminating the potential danger for shaft deflections and vibrations to the mechanical seals which would increase seals and bearing wear.

Mechanical reliability

With simple design of liquid ring pumps there are no reciprocating parts, no valves or sliding vanes. The impeller is the only rotating component with no metal to metal contact. Pump operation is therefore with minimal wear, vibration free and noise levels are greatly reduced.
