Atlas Copco LRP VSD+ Intelligent Liquid Ring Vacuum Pump | 700 - 1000 Series
- Overview
Intelligent Liquid Ring Pumps with Variable Speed Drive (VSD) technology
LRP 700-1000 VSD
The LRP VSD+ intelligent liquid ring vacuum offers superior vacuum performance and connectivity. It provides optimum energy efficiency along with low operational and maintenance costs. Its ease of use, integration into existing processes and centralization capabilities make this a truly unique liquid ring vacuum pump.

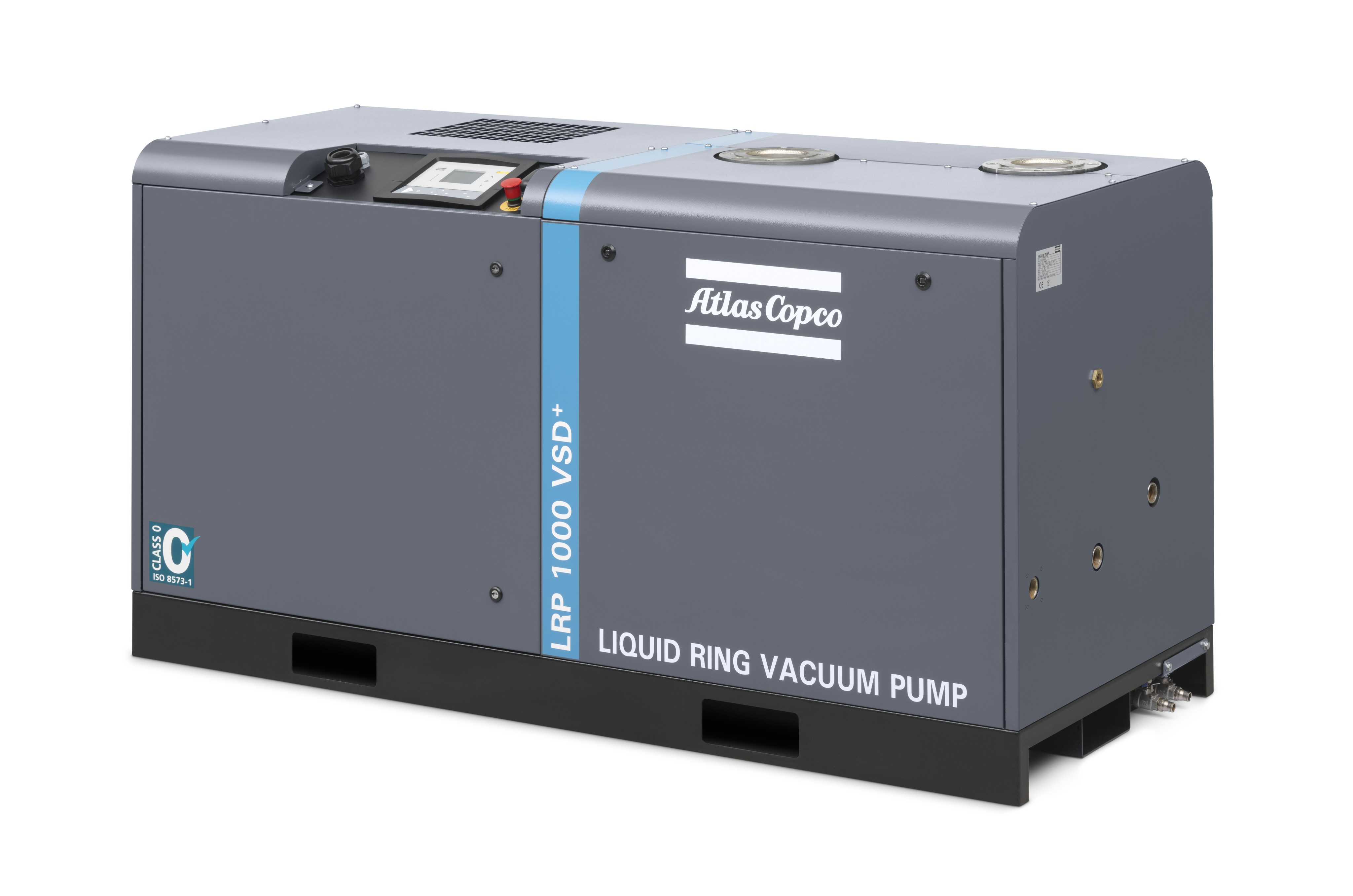

With a small footprint, the LRP VSD+ is delivered in a single neat enclosure. The noise containing canopy significantly reduces noise pollution in the immediate working environment with an operating noise level in the range of 65 dB(a).
Equipped with Atlas Copcoās MkV ElektronikonĀ® controller as standard, the LRP VSD+ has a comprehensive in-built vacuum management system. ElektronikonĀ® is a user-friendly monitoring system that can integrate to your plant management system for full pump and vacuum process control and provides feedback on pump operating status, operating history, set point control and inlet conditions.
1st VSD for vacuum set point control to maintain and match required vacuum levels. 2nd VSD regulates the water circulation pump,
offering you optimized water flow and stable vacuum levels

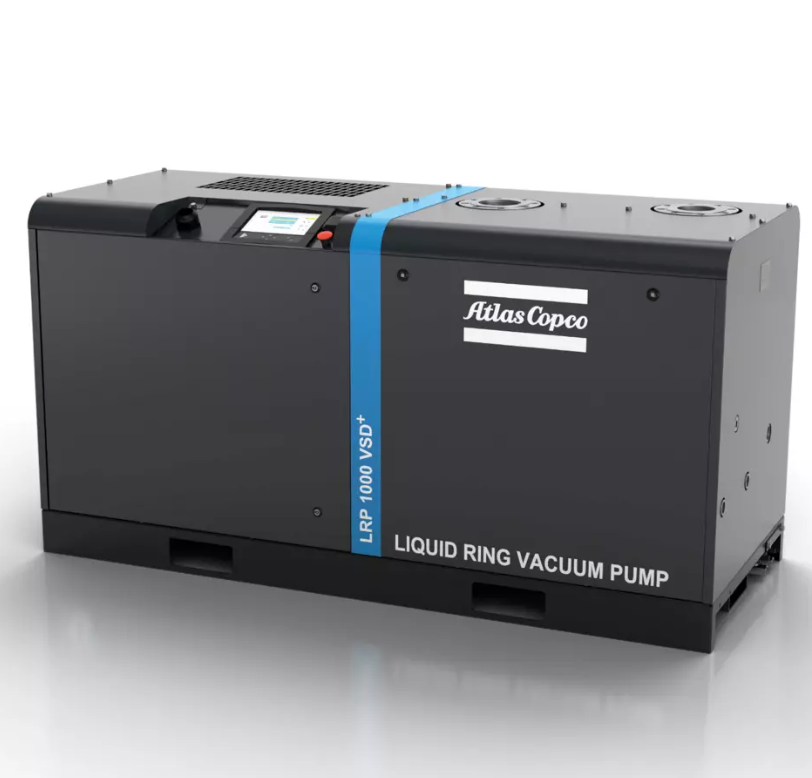

Cleverly engineered in a smart design the LRP VSD+ series is enclosed under a strong canopy offering a sleek and ergonomic look with the HMI, inlet, outlet and main cable connections located on top of the canopy
Atlas Copcoās HEX@GRID central controller allows you to monitor, control and optimize the performance of multiple LRP VSD+ vacuum pumps simultaneously
A safe operation that prevents the LRP VSD+ vacuum pump from seizure after a prolonged period of inactivity

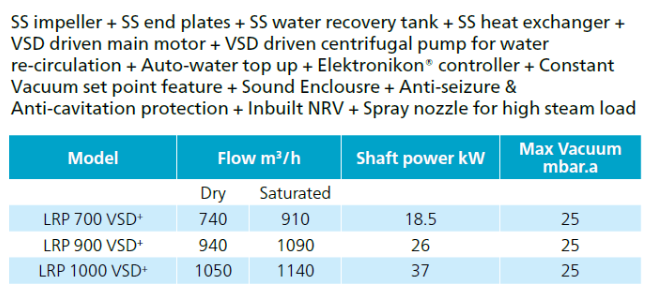

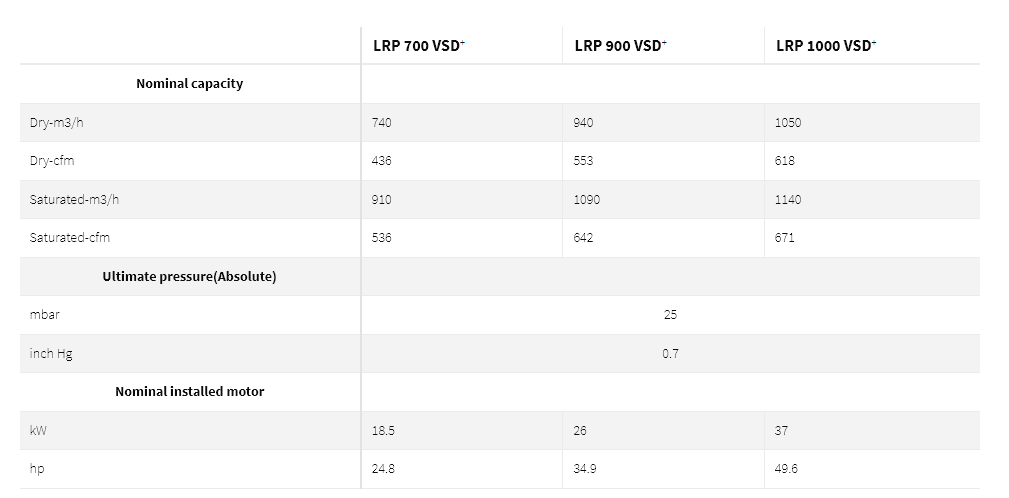

Technical Specifications

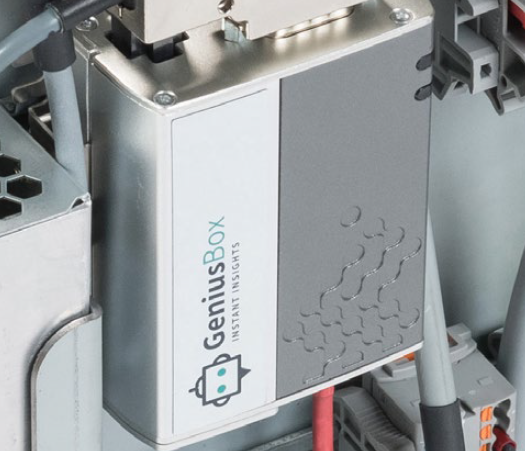

GENIUS Instant Insights
Fully compatible with the Atlas Copco GENIUS platform, the LRP VSD+ can be connected and remotely monitored by customers almost anywhere. Atlas Copcoās HEX@GRID central controller allows you to monitor, control and optimize the performance of multiple LRP VSD+ vacuum pumps simultaneously.
Variants available for every need
Total Recovery (Standard) A closed loop system that can also be of benefit when the seal fluid is in short supply or when
contamination may be a problem. Total Recovery (Stainless Steel)
Suitable for applications involving chemicals or more corrosive agents and is ideal for deal for harsher applications. Once-through
with Proportional Valve
Proportional valve allows the service liquid supply to be perfectly matched to the process with minimum service liquid consumption. Once-through
with Centrifugal Pump
Centrifugal pump with VSD control brings reliable supply of sealing water flow under required service liquid pressure without extra pressure
from external piping system. Shell & Tube More resilient against contamination and allowing the vacuum system to
operate in more challenging conditions such as poor water quality Weather Resistant
Intended for use in outdoor and semi-outdoor installations, the weather resistant variant offers higher pump protection against moisture and rainwater.
The LRP 700-1000 VSD+ is ideally suited for tough, wet and humid applications with liquid and solid carry over::
Applications
The Atlas Copco LRP VSD+ series is ideally suited for humid, wet and harsh applications or where liquid and solid carry over are seen by the pump. Designed for continuous duty, high reliability, efficient operation and high vacuum uptime.
Food processing
|
|
|
|
|
Plastic extrusion
|
|
|
|
|
|
Smart monitoring and remote controllability
ElektronikonĀ®
The Atlas Copco MkV ElektronikonĀ® controller is a standard feature of the LRP VSD+ series. ElektronikonĀ® is a state-of-the-art monitoring system for your vacuum pumps. It is user friendly, comprehensive and powerful. It can also integrate your plant management system for full pump and therefore vacuum process control. The ElektronikonĀ® also provides market leading feedback on the status of your LRP 700-1000 VSD+ including pump operating status, set point control and inlet conditions to name a few. Access all of the information for everyday management of your vacuum pump such as warning alarms, safety shutdowns and maintenance information.
ES Central Controllers

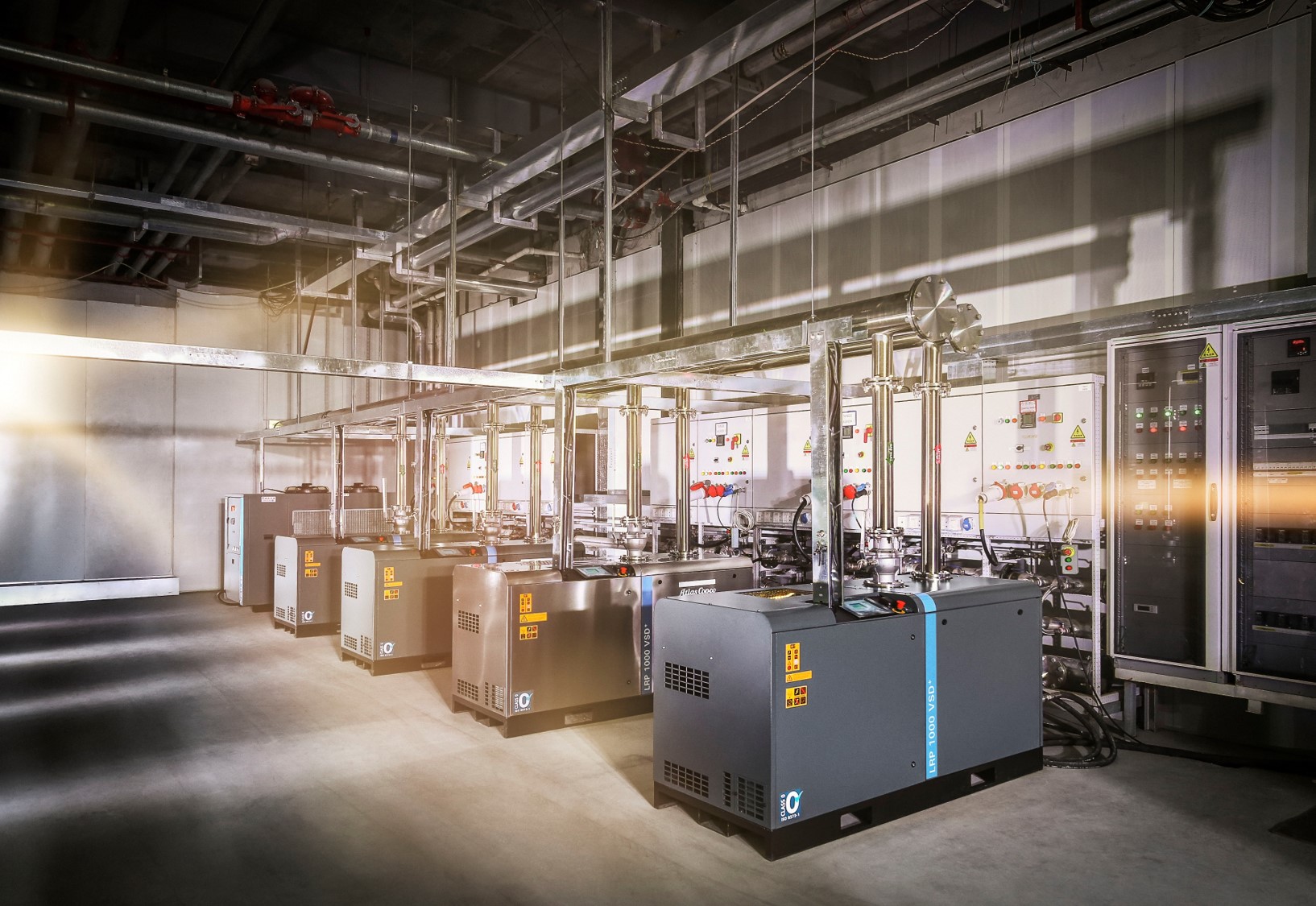

Atlas Copcoās ES central controllers allow you to monitor and control multiple LRP VSD+ vacuum pumps simultaneously. Thanks to smart control, the ES gives you the most suitable product performance mix at all times. This maximizes energy savings using set-point control and by mapping equal running hours across multiple installed pumps, keeping servicing requirements to a minimum. The ES controller also allows you to run your vacuum net within a narrow, predefined pressure band. This increases the stability of the process and optimizes overall energy consumption.
New breakthroughs in proven technology
Liquid ring vacuum technology is perfectly suited to wet, humid and dirty applications across many industries. In these applications the pump will face high temperatures, extreme vapor loads and even liquid and solid carry over from the process. Atlas Copcoās Intelligent liquid ring pumps build on this foundation and through game changing innovation take the next step in LRP evolution. We now introduce our revolutionary product, the LRP 700-1000 VSD+.
The LRP VSD+ is a truly unique liquid ring vacuum pump, offering best in class performance and connectivity. It is a state-of-the-art vacuum solution that provides optimum energy efficiency along with low operational and maintenance costs. Its ease of use, integration and centralization capabilities are unrivalled. No other liquid ring vacuum pump offers this level of efficiency and economy, while maintaining the highest degree of standard build scope and quality.
.jpg)
.jpg)

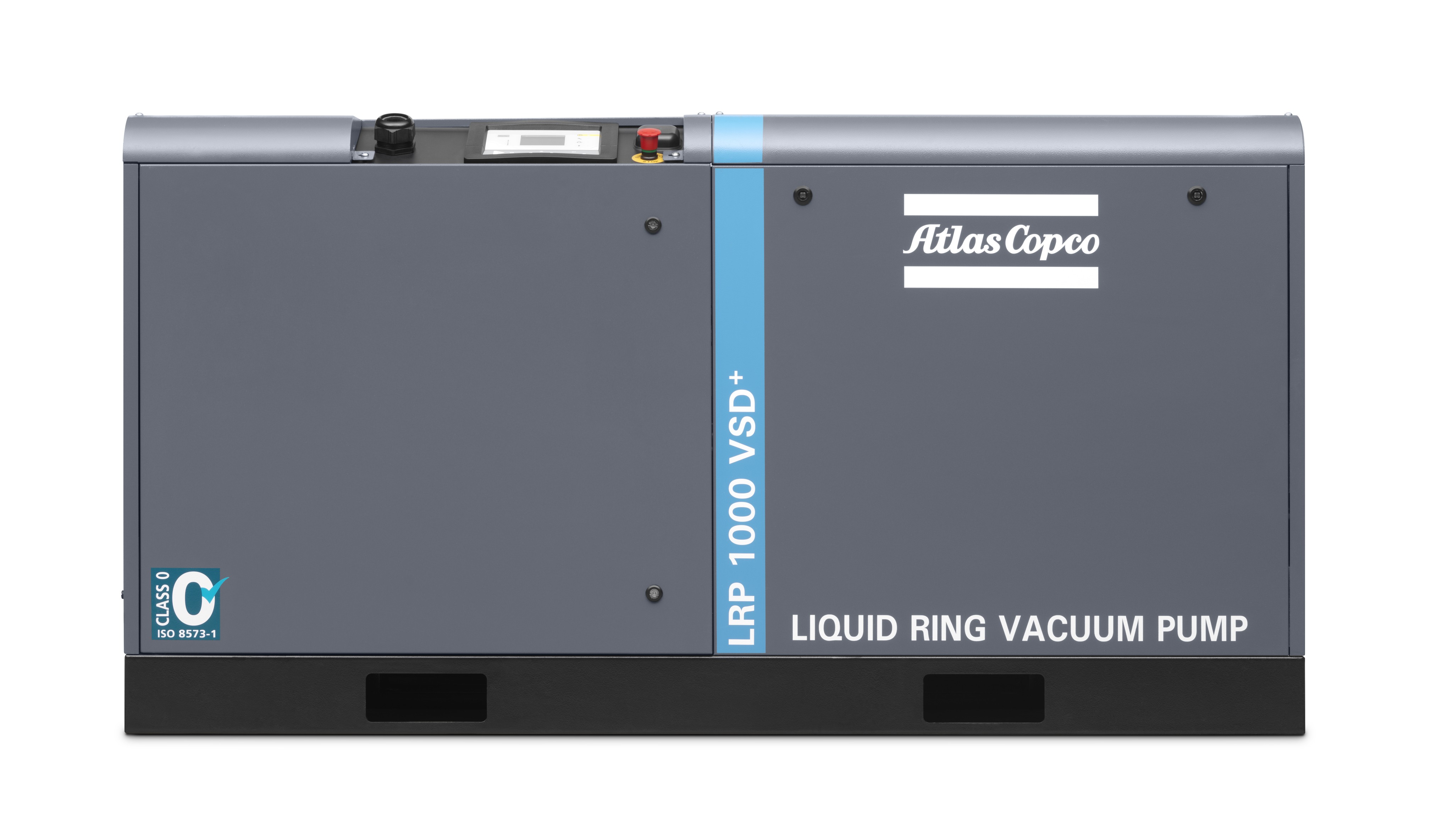

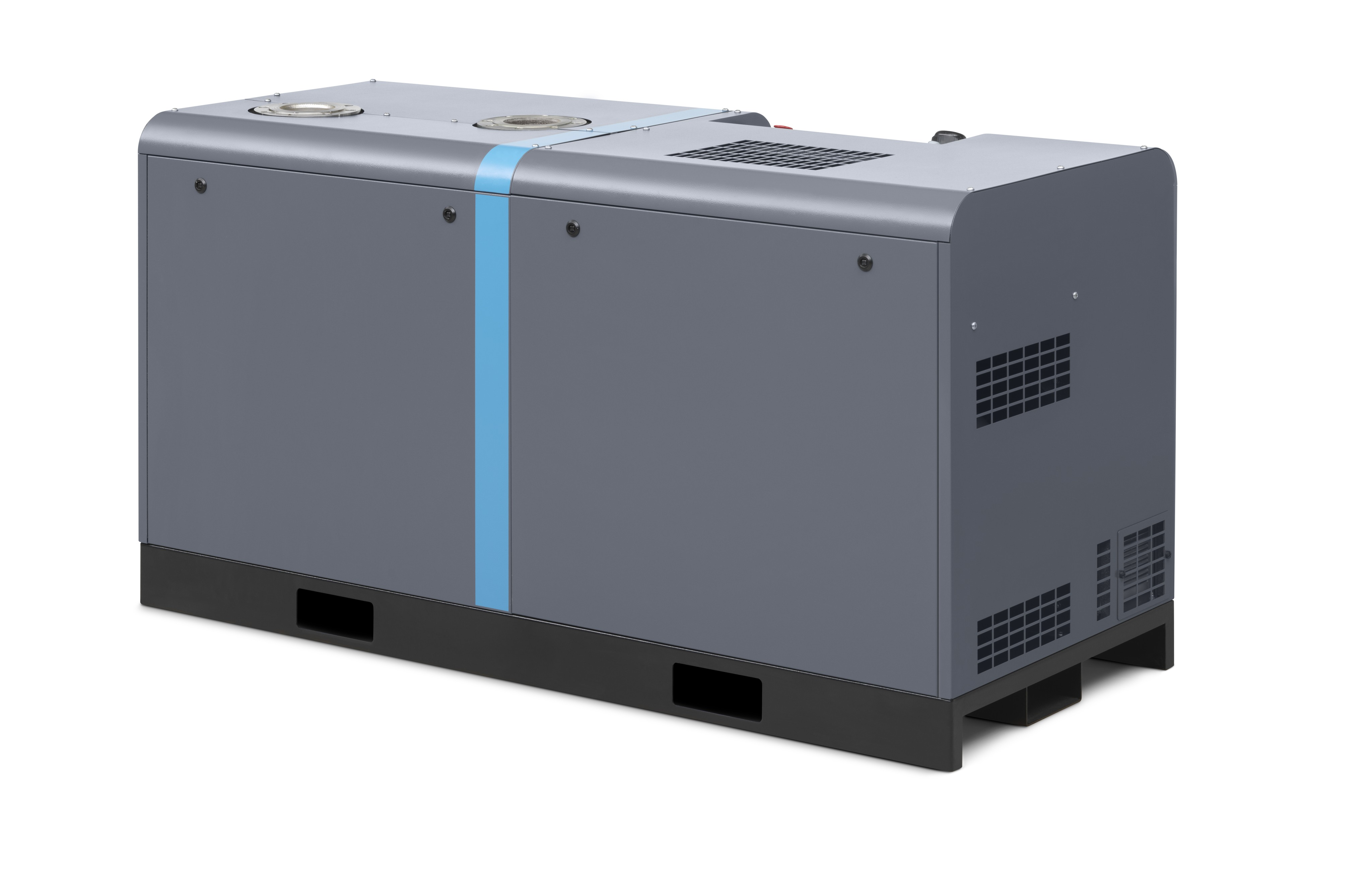

Cleverly engineered in a smart design

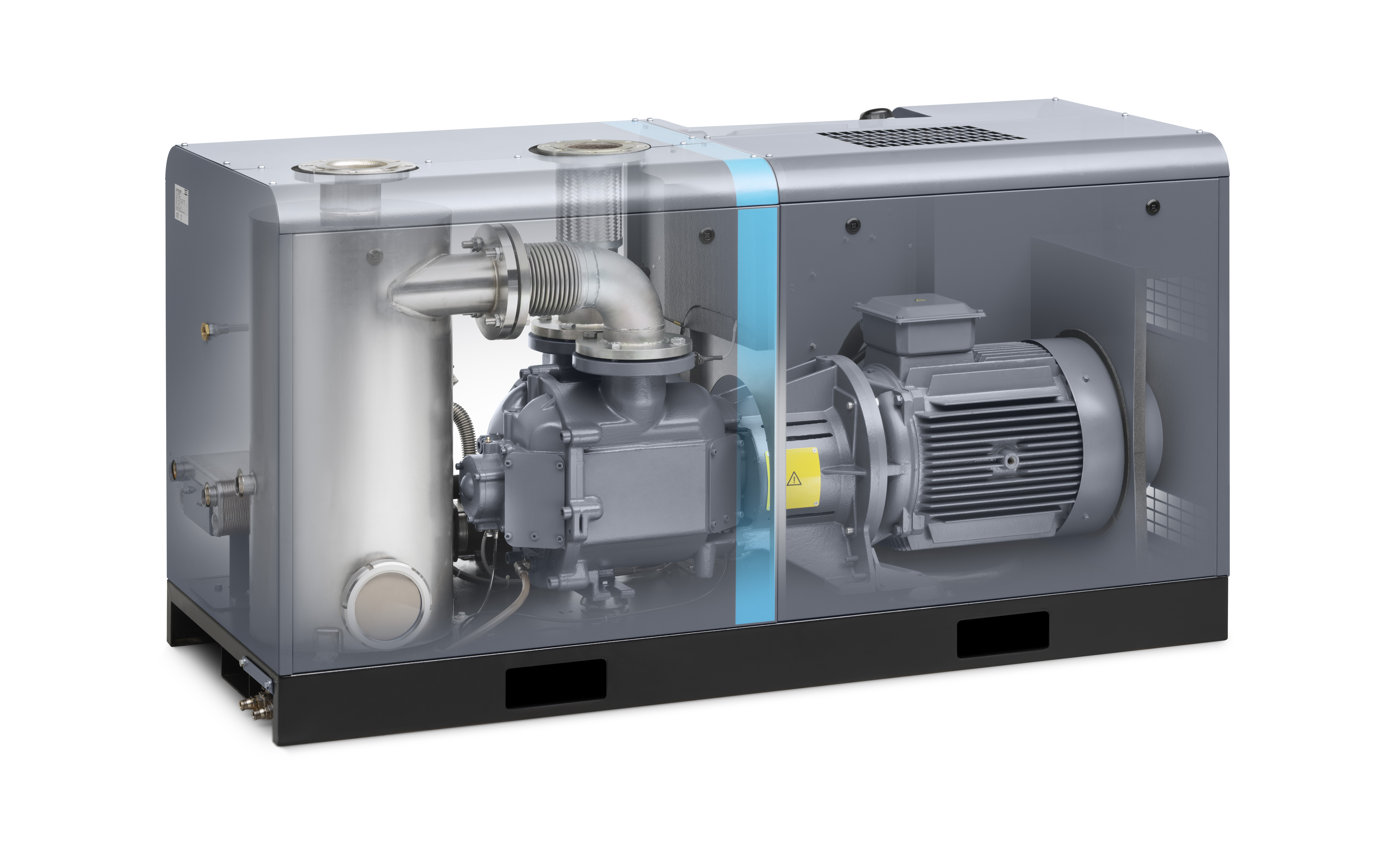

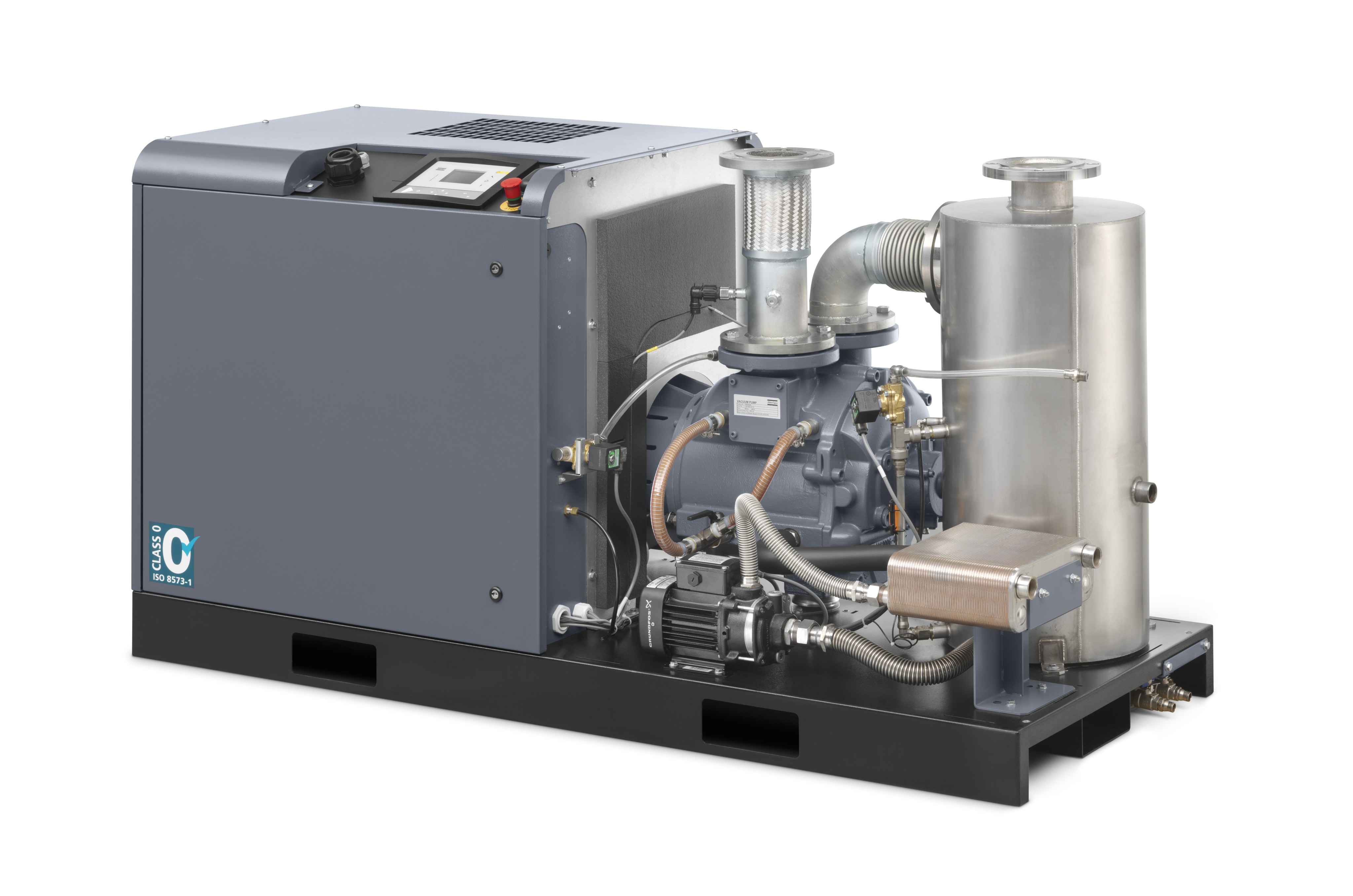

Atlas Copcoās LRP 700-1000 VSD+ is unique in many ways. The core of the pump is innovative engineering and optimised design which is then enclosed under a strong canopy ensuring this pump is as robust as it is beautiful.
This sleek look is also ergonomic - HMI, inlet, outlet and main cable connections are all located at easy to reach positions on top of the canopy ā making this a truly plug and play product.

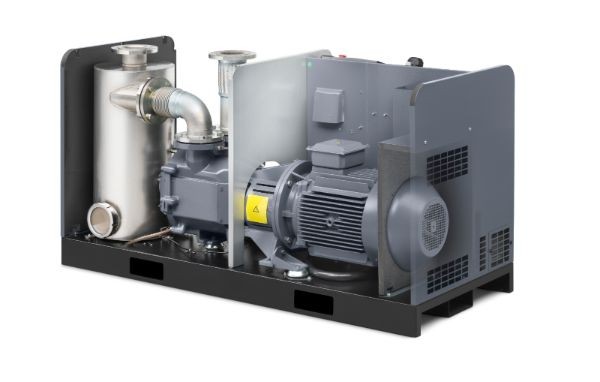

The compact nature of the pump is also striking, having one of the smallest footprints per unit capacity means that the LRP VSD+ saves space without compromising performance. This tidy unit does not sacrifice functionality either, included in the pump are a host of performance optimising accessories that would normally take up additional space, piping and installation work.

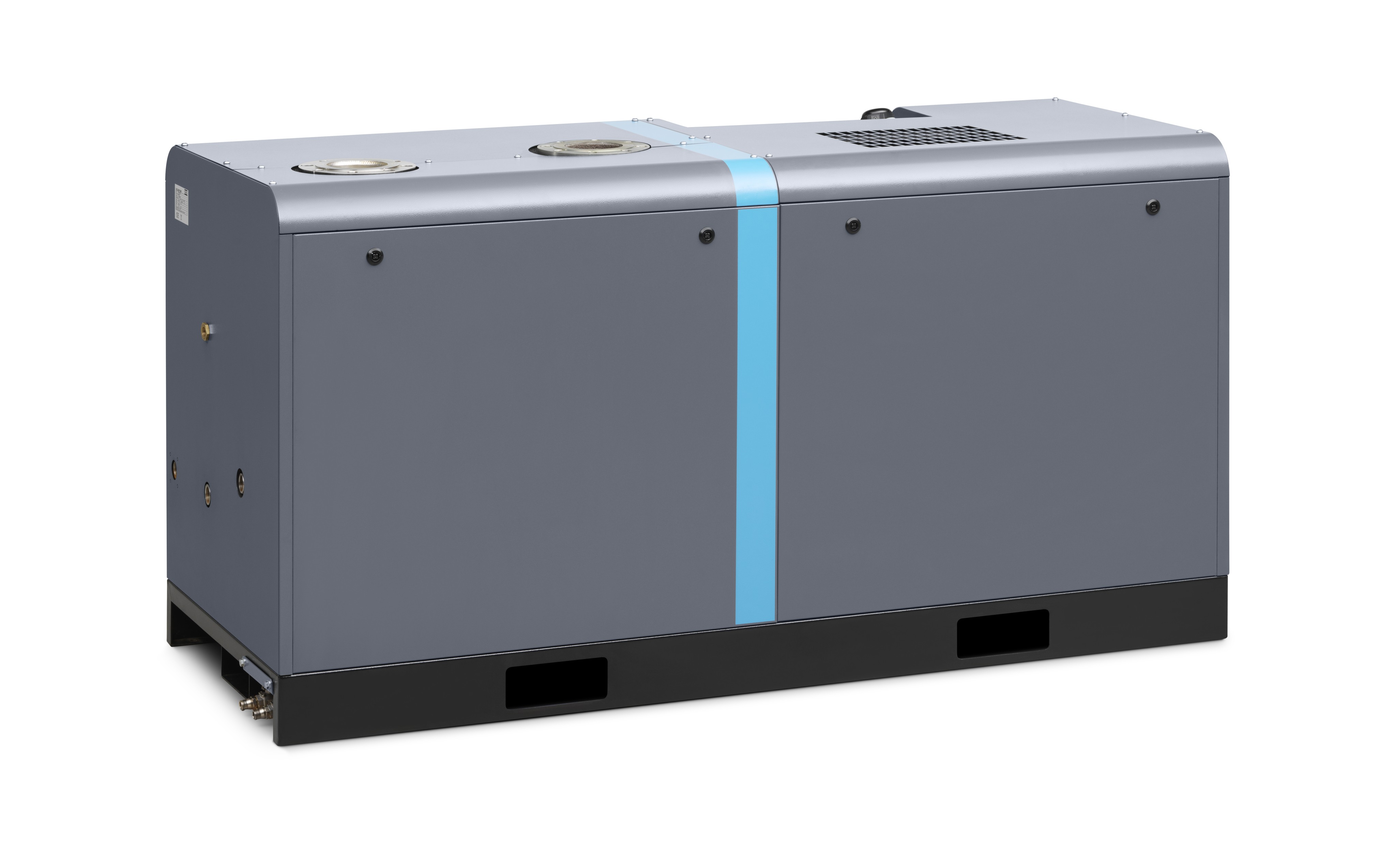

The LRP VSD+ is delivered in a single neat enclosure. Having a noise containing, IP54 rated cubicle, the LRP VSD+ significantly reduces noise pollution and is resistant to dust and water from any direction. Making it ideally suited for tough applications and environments.

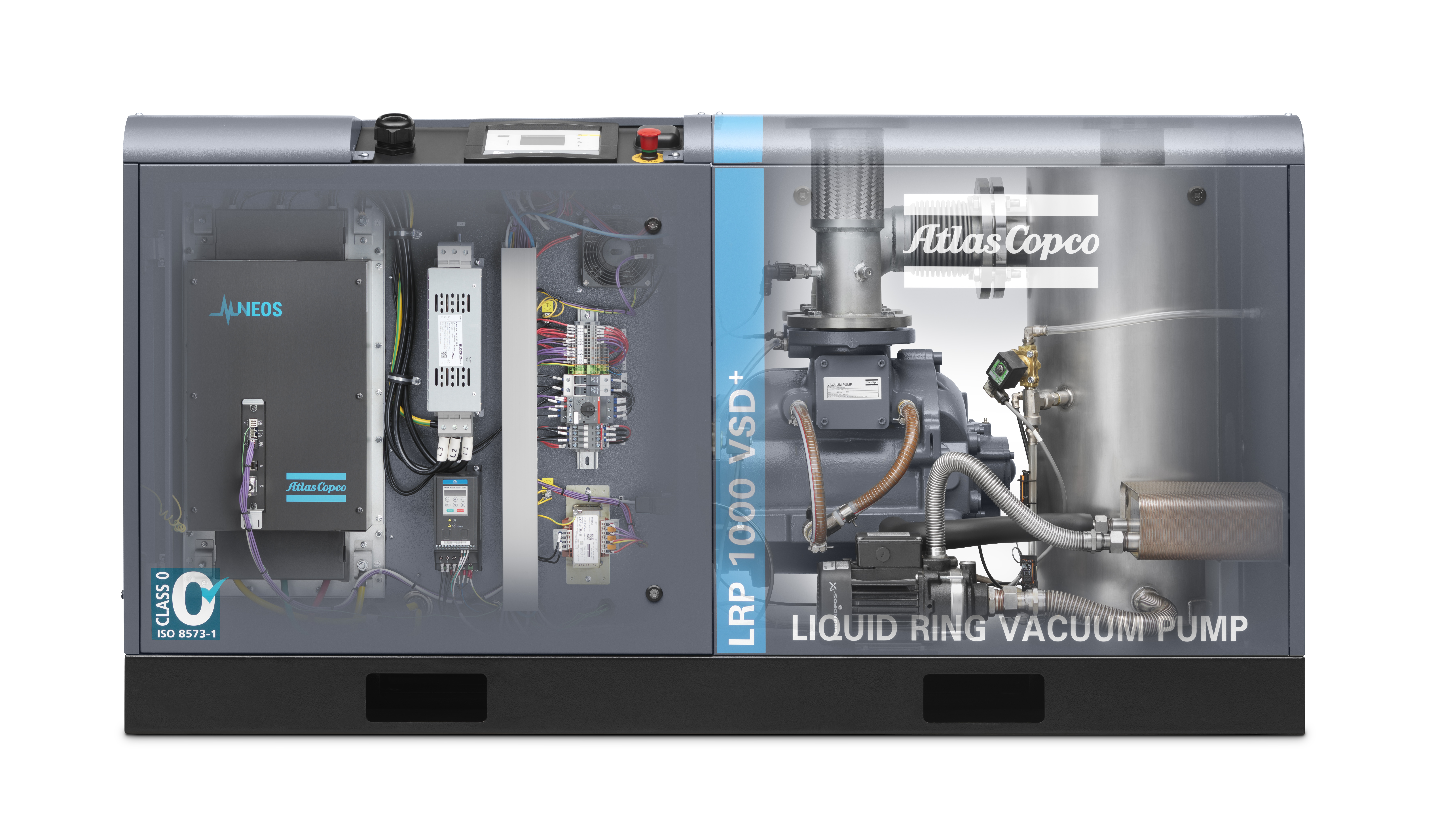

The canopy follows a wet/dry design principle. The critical electronics within the pump are protected from the wet and humid inflow from the process side. This feature extends the lifetime of electronic components and leads to a longer Mean Time Between Maintenance (MTBM).
