Case study: Pneumatech Nitrogen Skid Project for Laser Cutting Application in Te Awamutu

Overview

Here at Ash Air, we're proud to create exceptional partnerships. We spoke with Cut Fold NZ about their Ash Air-installed high-pressure Pneumatech Nitrogen Skid used for high-quality laser cutting at their purpose-built facility in Te Awamutu, Waikato.

Product range:  Pneumatech PPNG 1-12 High Pressure Nitrogen Skids HE: a VSD compressor, a high-pressure booster, a premium PSA nitrogen generator, and all necessary air and nitrogen storage and treatment

The issue:  Customer required independence from third party supply, desired overall savings on production costs and flexibility to suit operations

Technology:  Contanerised solution for compressed air and nitrogen system

Business type:  Laser Cutting

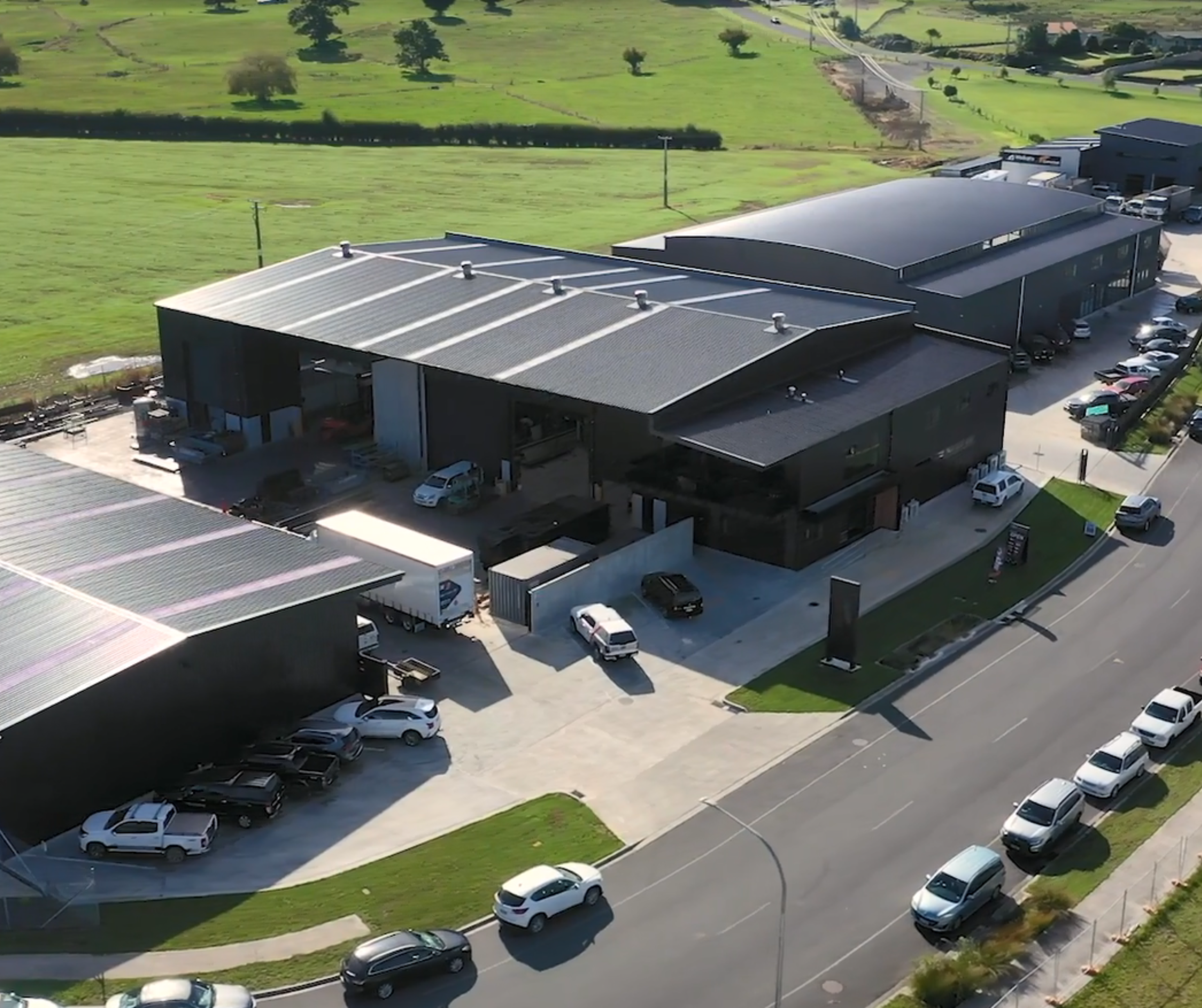

Location: Te Awamutu, Waikato, New Zealand


Contact our team about Nitrogen Generation for your business today! Contact our team about Nitrogen Generation for your business today!

Concern:

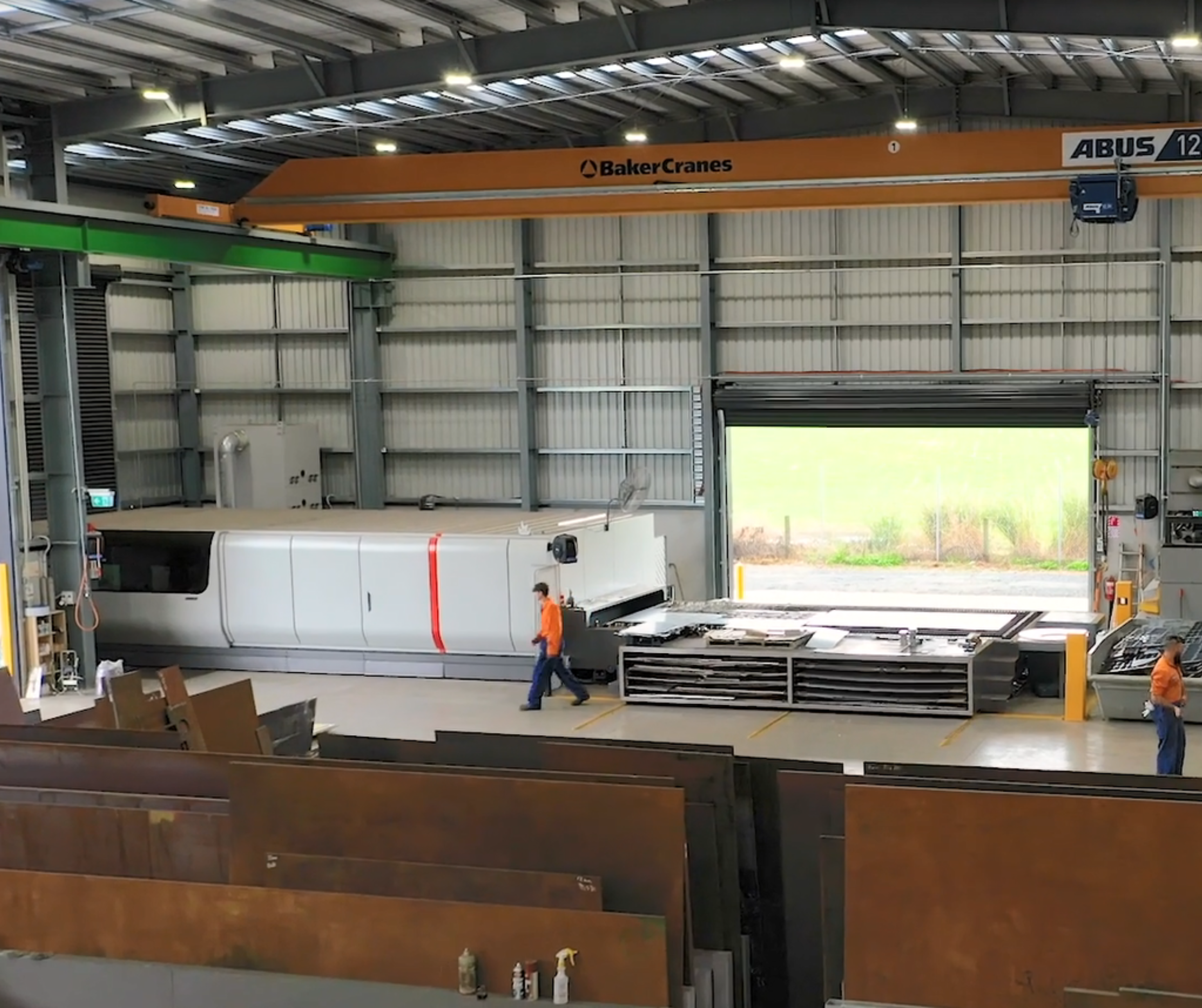

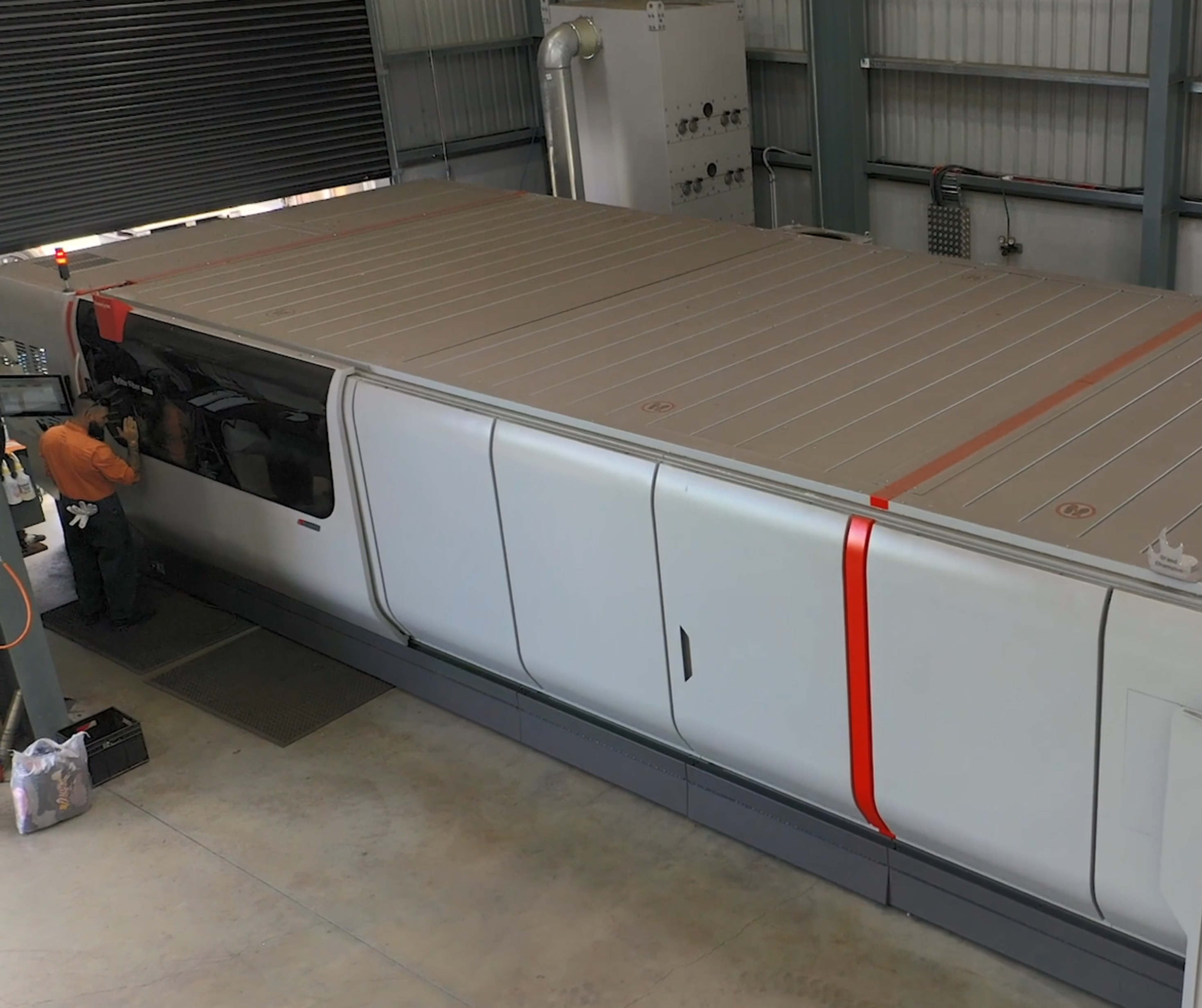

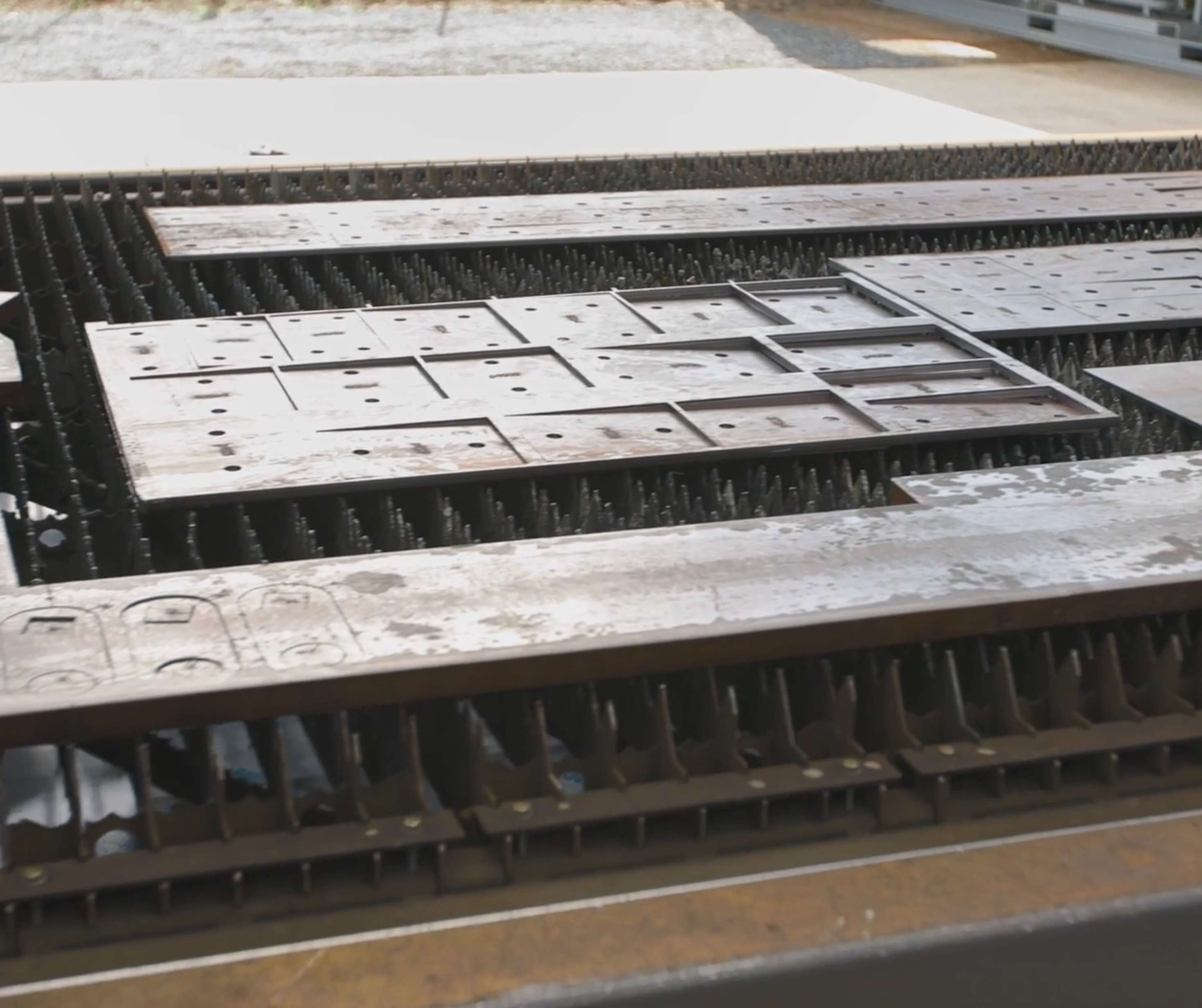

Eleven years ago, Edwards Engineering Services responded to the growing demand for profile cutting services, leading to the creation of Cut Fold NZ to cater to this specific aspect of the business. Brian Edwards, Director, needed to ensure that a consistent and reliable Nitrogen supply was available onsite for Cut Fold NZ's high-powered laser cutting machine - one of the largest in New Zealand. The concern stemmed from the fact that running out of nitrogen would halt the cutting process and affect operations significantly.


The solution:

To address the need for consistent and reliable Nitrogen supply, Brian opted for a comprehensive solution - a high pressure Pneumatech Nitrogen PPNG Skid 12 HE package for their laser cutting application. This included: The compact and sturdy base frame contains a complete high-pressure nitrogen generation system: a VSD compressor, a high-pressure booster, a premium PSA nitrogen generator, and all necessary air and nitrogen storage and treatment. This turnkey set-up not only ensured a continuous nitrogen supply but also allowed our customer's business to operate 27/5 without worry about interruptions due to oxygen shortages.

The Results:


Installation and commissioning of the containerized solution was achieved and the Pneumatech Nitrogen Skid has been currently operating "flawlessly", currently production between 99.995% and 99.999% purity.

As a result of this strategic investment Cut Fold NZ has seen a significant saving on costs and energy reduction, and are accompanied by newfound independence from third-party suppliers, providing the customer with full control over their production capacity. Additionally, the switch to an in-house nitrogen supply system led to a reduction in the environmental impact of truck deliveries of liquid nitrogen (LIN). Furthermore, the energy-efficient solution implemented not only contributed to sustainability goals but also resulted in significant savings in production costs overall. This holistic approach not only optimised operational efficiency but also underscored the company's commitment to environmental stewardship and cost-effectiveness.


Creating exceptional partnerships throughout New Zealand

Discover the power of high-pressure nitrogen skids with Ash Air's Pneumatech PPNG NE nitrogen skid. The ultimate all-in-one solution, featuring a variable speed drive (VSD) compressor, high-pressure booster, premium PSA nitrogen generator, and comprehensive storage and treatment capabilities.

Watch the customer video to learn more about our customer, Cut Fold NZ, and high pressure Nitrogen Skid for laser cutting applications.

PLAY VIDEO


"Buying a Nitrogen Skid through Ash Air means that we can run 24 hours a day without worrying about running out of Nitrogen! Ash Air turned up to Cut Fold NZ, craned the [Nitrogen Skid] into place, and it has been working flawlessly. The Pneumatech Nitrogen Skid currently produces between 99.995 % and 99.999% purity!  Ash Air have been really good to deal with...easy, reliable, good honest feedback, and simple to deal with. I highly recommend them".

Brian Edwards
Director, Cut Fold NZ

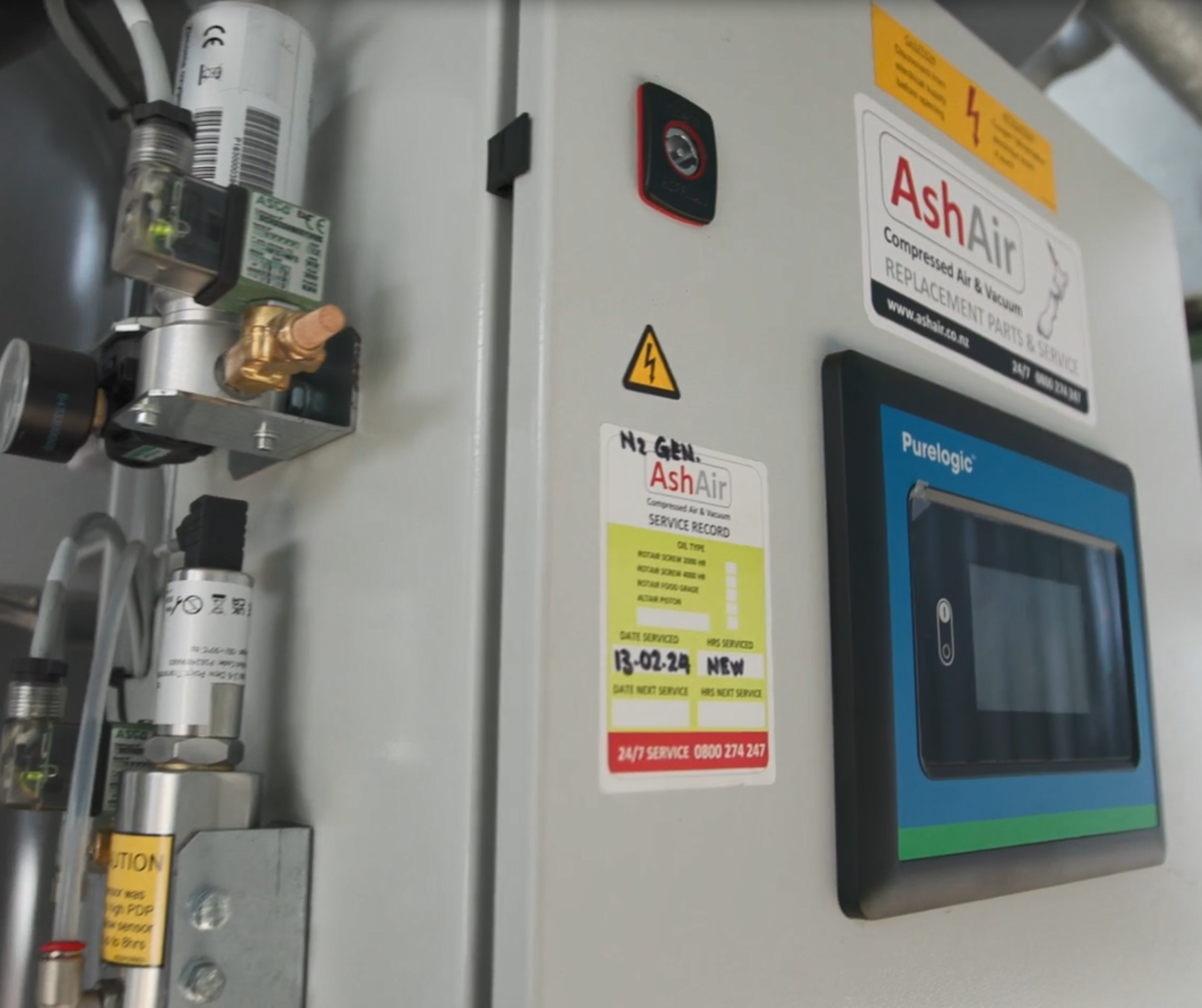

Gallery:

The PPNG high-pressure nitrogen skid

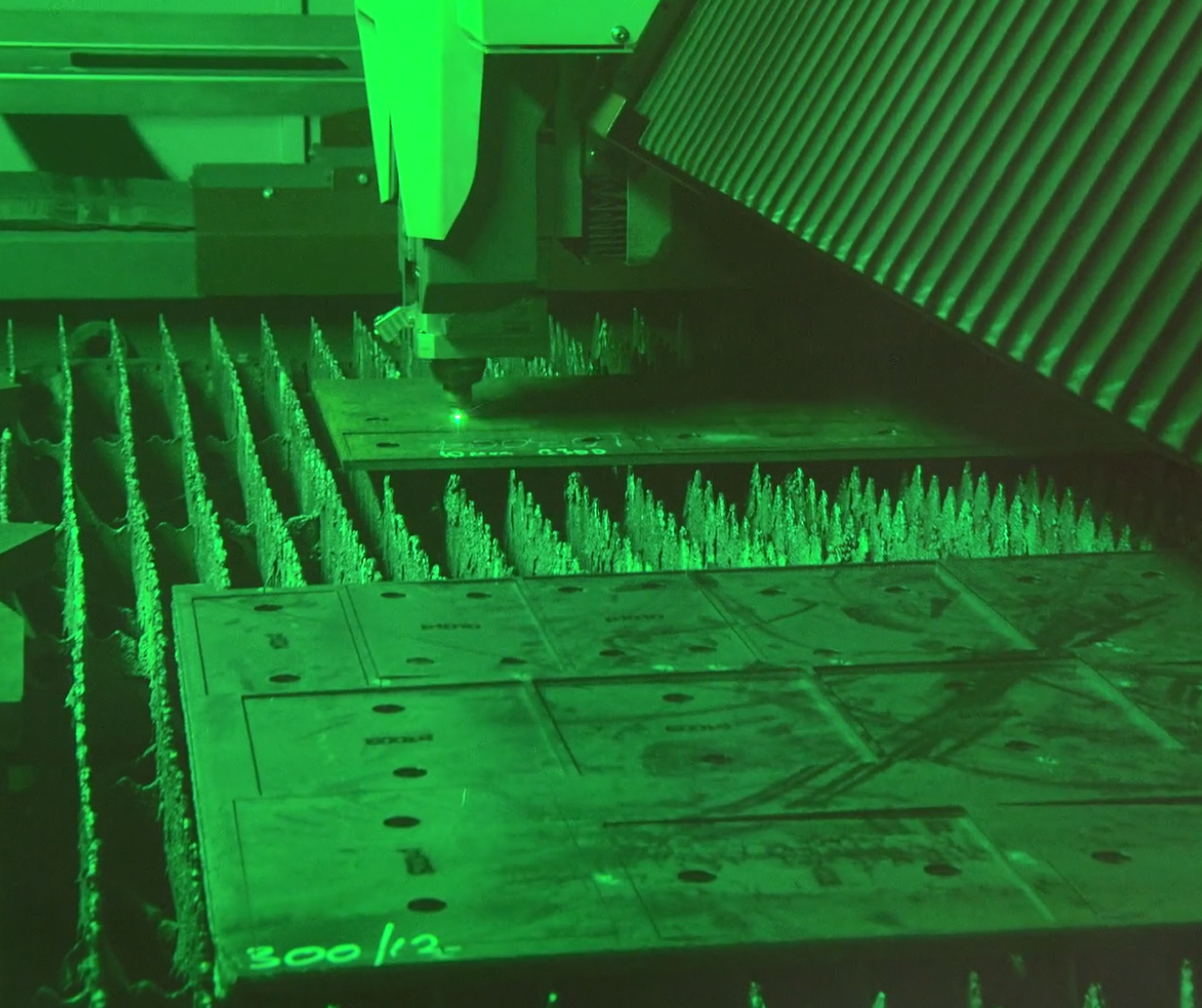

The ideal solution for laser cutting

Many companies that do laser cutting still purchase their nitrogen – even though generating your own gas on-site offers more advantages.

Here are just four:

  • Greater cost-efficiency saves you money
  • Eliminating bottle or liquid deliveries reduces your environmental footprint
  • Take charge of your own nitrogen supply
  • Less hassle by removing supply logistics


Get started Get started Download the application brochure Download the application brochure

All-in-one/plug-and-play

  • All-in-one nitrogen generation system
  • Single power supply for the complete skid
  • Forklift slots for easy lifting and moving
  • PPNG HE nitrogen generator with energy savings at full and low load

Reduced energy costs

  • 30% more efficient than other high-pressure N2 packages
  • VSD compressor with integrated refrigerant dryer
  • 40 or 300-bar booster sized to minimize power use

Guaranteed purity

  • Purity selection up to 99.999%
  • Automatic nitrogen pressure and purity regulation
  • Zirconia sensors for reliable purity measurement

Reliability

  • Several layers of filtration
  • Protective features
  • All components built and tested to work together optimally



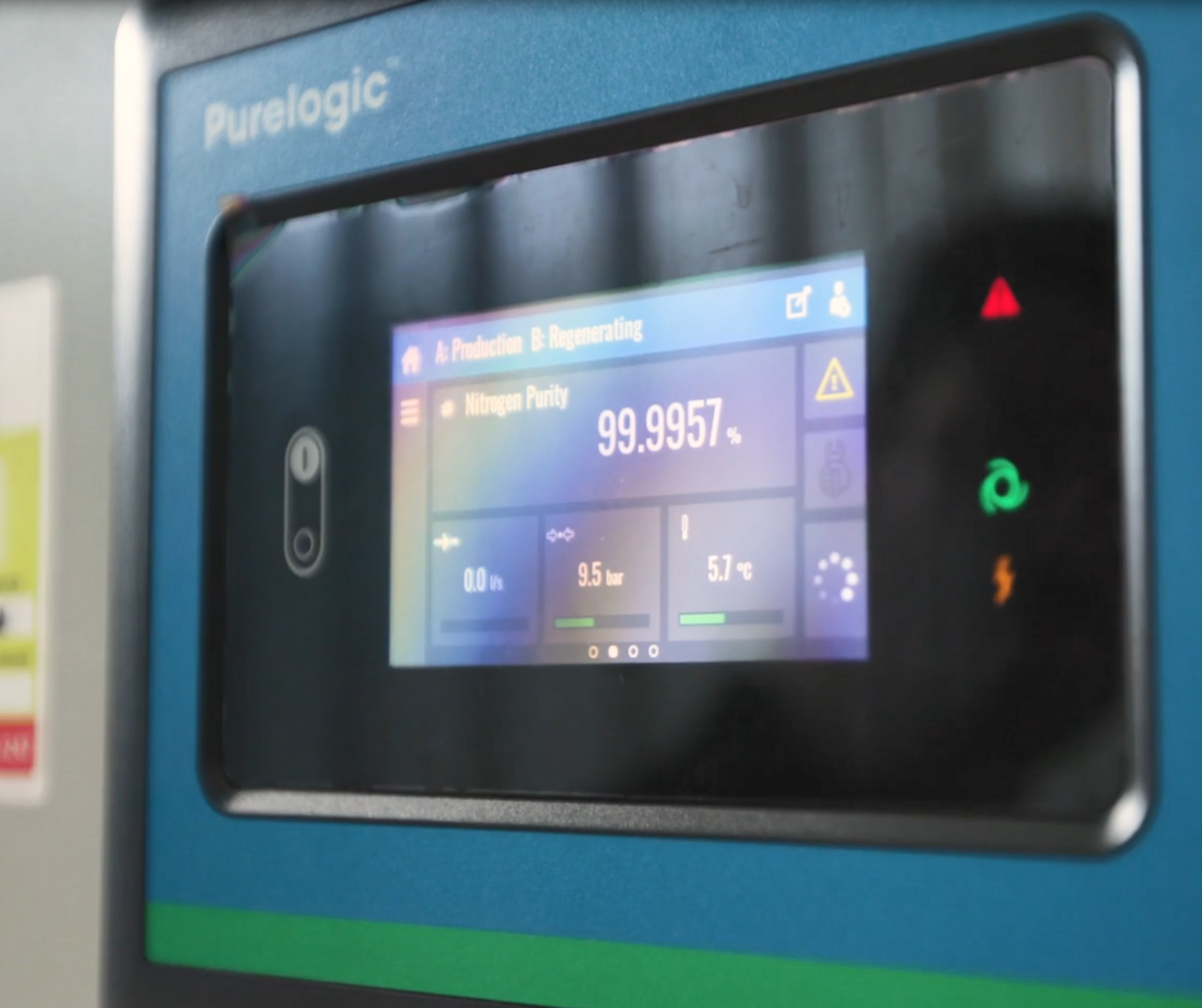

PurelogicTM control & monitoring

  • Self-protective monitoring of feed air quality
  • Nitrogen flow, purity and pressure measurement and control
  • Optional 24/7 ICONS remote monitoring




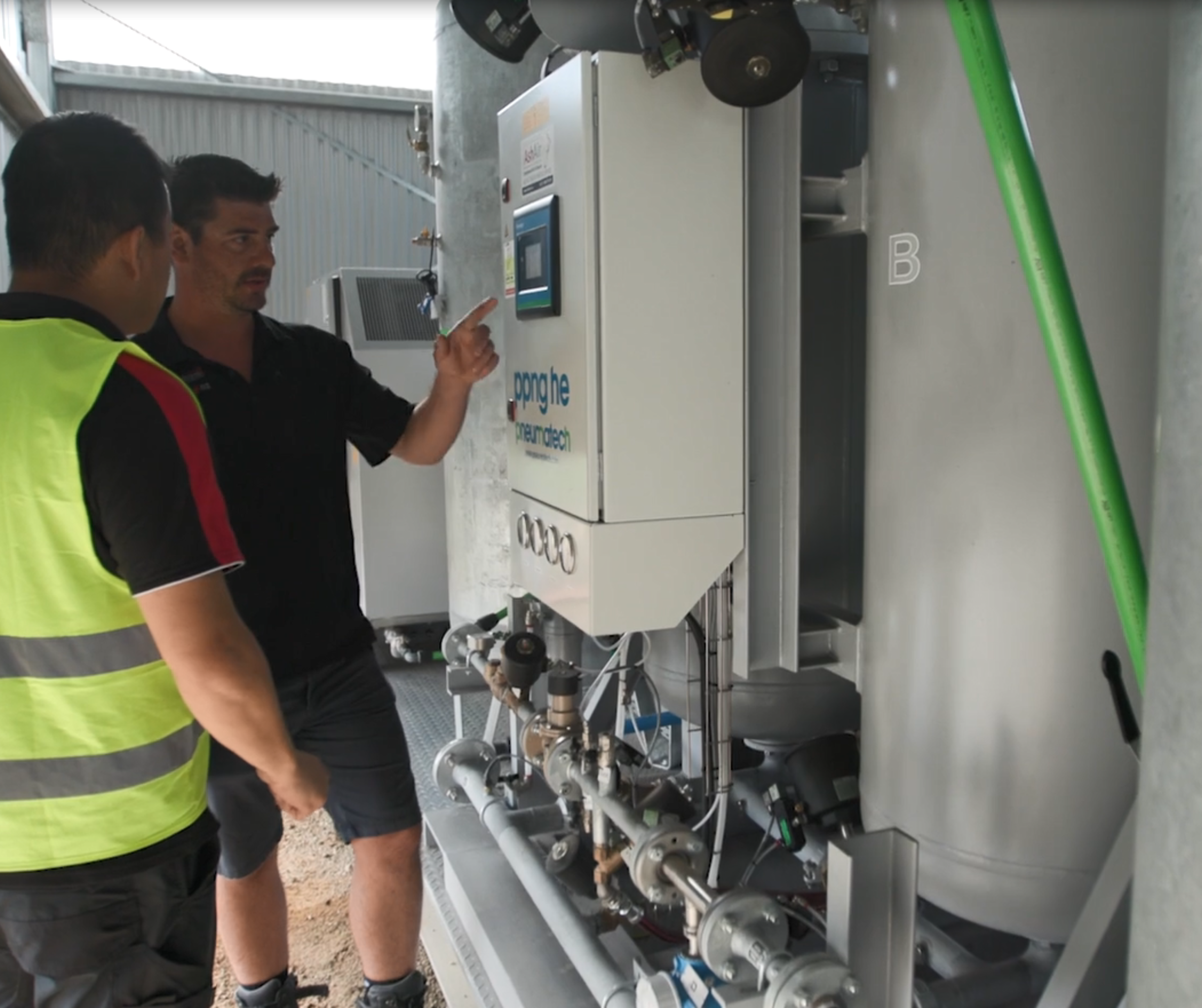

PPNGs nitrogen generator

  • Guaranteed purity
  • Outstanding air factors
  • Energy saving control
  • Optimal control and monitoring thanks to Purelogicβ„’ controller
  • Very quiet operation due to improved noise insulation
  • Compact design, also thanks to integrated refrigerant dryer



4-stage filter train for guaranteed purity and reliability

  • General-purpose and high-efficient oil-coalescing filters, activated carbon tower and high-efficient particle filter
  • Guaranteed air quality of class 1:4:1 (according to ISO8573-1:2010) at the inlet of the nitrogen generator


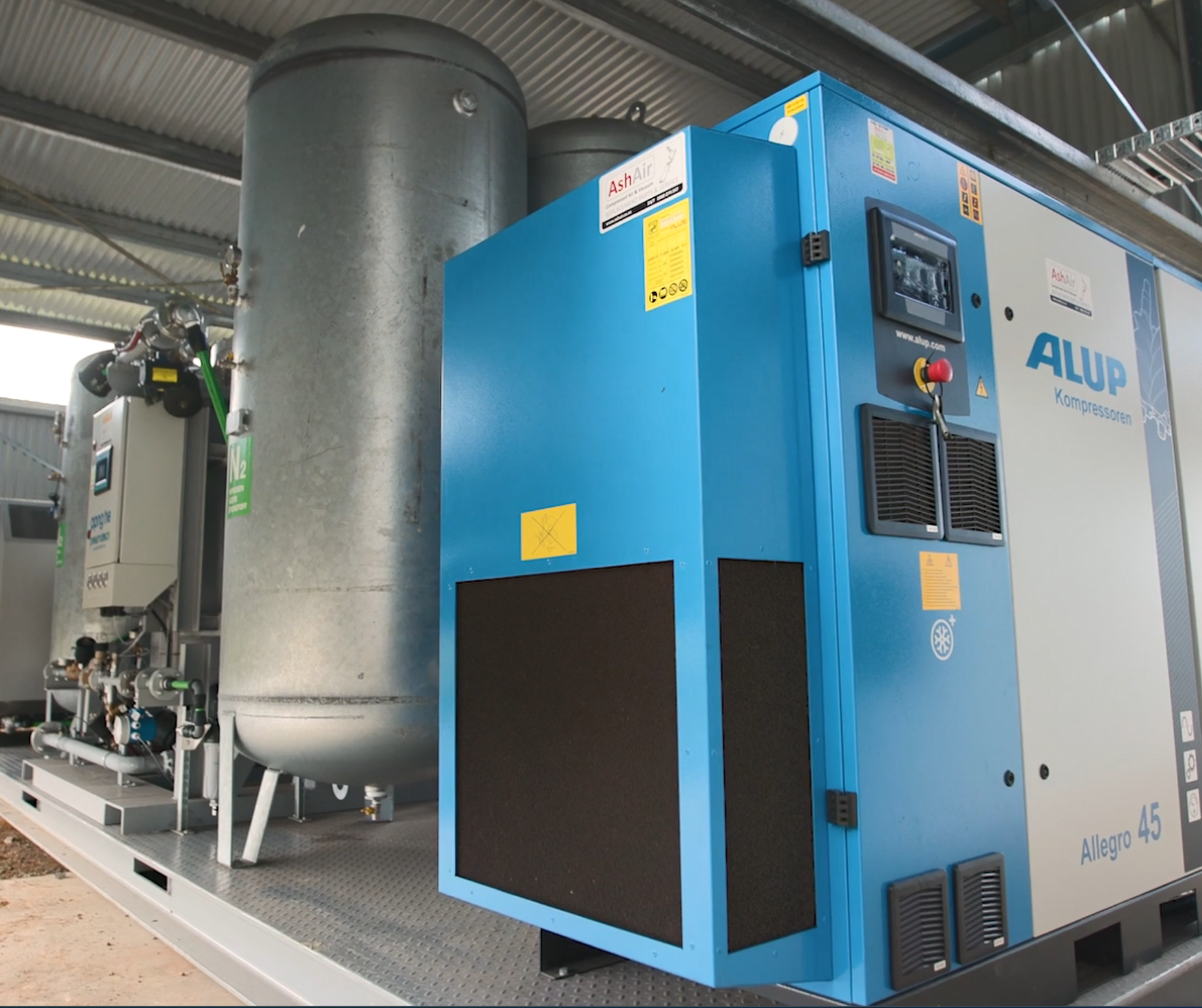

Variable speed compressor with integrated refrigerant dryer

  • Closely follow the air demand by automatic adjustment of the motor speed
  • Direct driven transmission for outstanding energy efficiency and reliability





Technical specifications for PPNG 1-6 skid HE
Pneumatech Variant PPNG Skid 1 HE PPNG Skid 2 HE PPNG Skid 3 HE PPNG Skid 4  HE PPNG Skid 5  HE PPNG Skid 6  HE
N2 pressure - Nominal 40 40 40 40 40 40
N2 capacity - 99.95% 8.9 14 21.6 31.5 36.9 73.8
N2 capacity - 99.99% 6.6 10.4 20.6 30.3 36.9 73.8
N2 capacity - 99.999% 4.1 6.3 13.6 20.4 27.2 49.7
Compressor model 8 kw 11 kw  15 kw  22 kw 31 kw 45 kw
Inlet filtration PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D
Air / N2 buffer vessels (L) 500 500 1000 1000 1500 2000
Nitrogen generator PPNG12 HE PPNG18 HE PPNG37 HE PPNG50 HE PPNG68 HE PPNG100 HE
Nitrogen LP storage 1000 1000 1000 1500 1000 2000
Nitrogen booster 7.5 kw 7.5 kw 7.5 kw 7.5 kw 7.5 kw 7.5 kw
HP filtration 50 Barg G - C - V - D  50 Barg G - C - V - D  50 Barg G - C - V - D  50 Barg G - C - V - D  50 Barg G - C - V - D  50 Barg G - C - V - D
HP storage 45 Barg 500L 45 Barg 500L 45 Barg 1000L 45 Barg 1000L 45 Barg 1000L 45 Barg 1000L
Technical specifications for PPNG 7-12 skid HE
Pneumatech Variant PPNG Skid 7 HE PPNG Skid 8 HE PPNG Skid 9 HE PPNG Skid 10  HE PPNG Skid 11  HE PPNG Skid 12  HE
N2 pressure - Nominal 300 300 300 300 300 300
N2 capacity - 99.95% 9.9 14.9 24 36 38 80.4
N2 capacity - 99.99% 7.3 11.1 22.9 32.9 38 80.4
N2 capacity - 99.999% 4.5 6.9 15.1 22.4 29 55.2
Compressor model 8 kw  8 kw  15 kw 19 kw 22 kw 45 kw
Inlet filtration PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D PMH G - C - VT  - D
PMH G - C - VT  - D
Air / N2 buffer vessels (L) 500 500 1000 1000 1500 2000
Nitrogen generator PPNG12 HE PPNG18 HE PPNG37 HE  PPNG50 HE PPNG68 HE PPNG100 HE
Nitrogen LP storage 1000 1000 1000 1000 1000 1000
Nitrogen booster 5.5 kw 5.5 kw 5.5 kw 11 kw 11 kw 2x11 kw
HP filtration HP V filter HP V filter HP V filter HP V filter HP V filter HP V filter
HP storage 12 x 50L X 300 Barg 12 x 50L X 300 Barg 12 x 50L X 300 Barg 16 x 50L x 300 Barg 16 x 50L x 300 Barg 16 x 50L x 300 Barg

Discover the benefits

High pressure nitrogen skid for on-site gas generation



1. Cost efficiency

Built with the latest technology, providing significant savings on energy costs. You enjoy a lower cost per unit of gas.

2. Sustainability
Designed with the highest efficiency equipment, a skid minimizes energy consumption. You also eliminate the transport emissions of gas deliveries.



Our PPNG NE nitrogen skid provides an all-in-one solution

3. Reliable nitrogen supply

No need to count on external vendors. On-site generation provides complete control over supply.

4.  No logistics
Say goodbye to monitoring your N2 supply, and tracking and handling deliveries.
5. Compact setup
All components are designed in the most compact, pre-commissioned layout.


Where is a skid package used?

The PPNG HE skid package is the preferred nitrogen solution for laser cutting. It's also ideal for food and beverage packaging, aircraft tire filling, aerospace manufacturing. In addition, other applications requiring high uptime, purity, flow, and gas quality benefit from a skid.




Products of Choice for this project

Pneumatech PPNG 1-12 High Pressure Nitrogen Skids HE

 The PPNG skid  HE is the complete on-site nitrogen generation system that gives you total control over your nitrogen supply and significant cost savings.

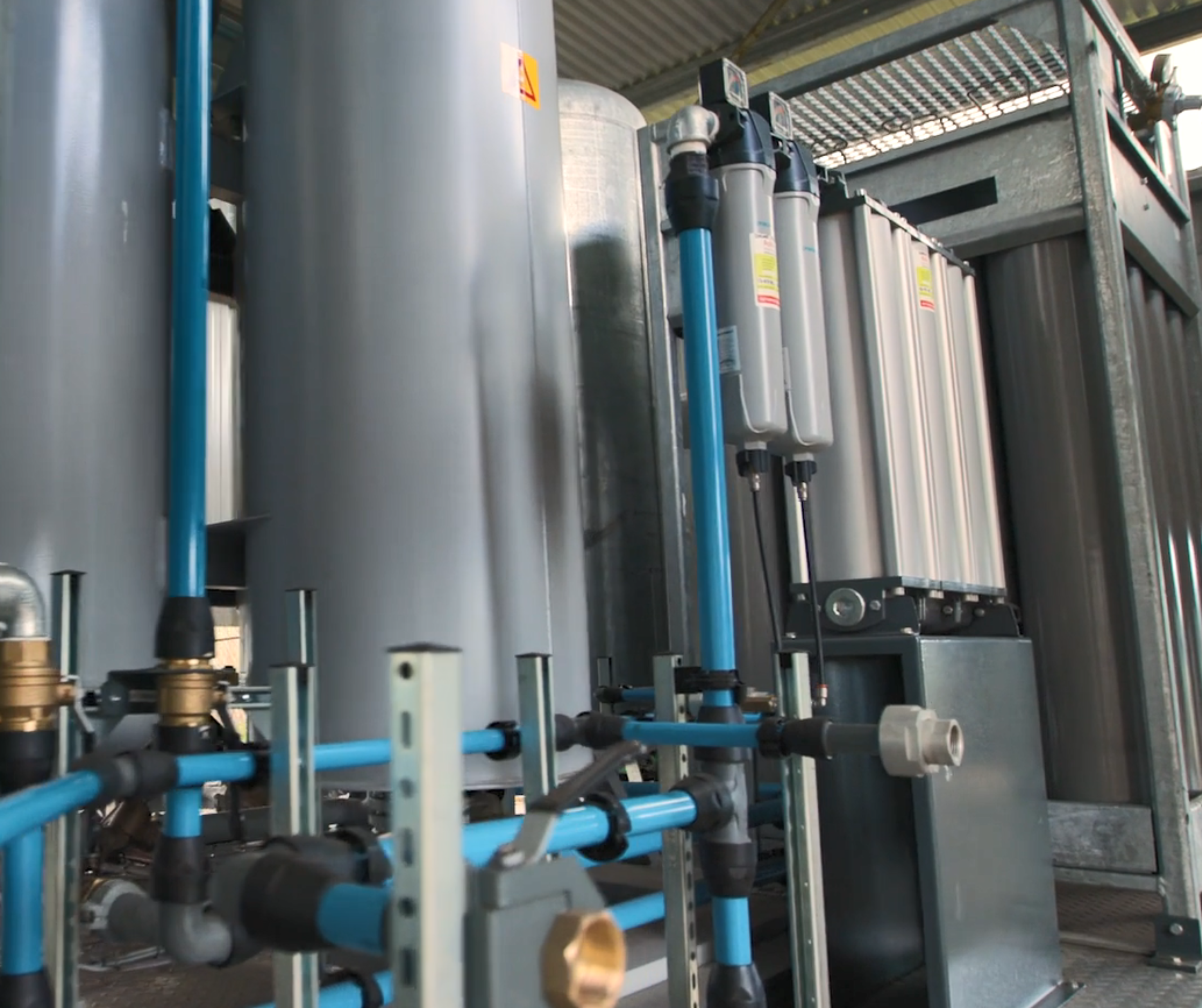

The compact and sturdy base frame contains a complete high-pressure nitrogen generation system: a VSD compressor, a high-pressure booster, a premium PSA nitrogen generator, and all necessary air and nitrogen storage and treatment.

All components are built and tested to deliver a completely turnkey solution with just one power supply and one nitrogen connection. In addition, you can optionally also use the skid to meet your compressed air needs.

To give you maximum flexibility, the PPNG skid HE comes in two versions: 40-bar for peak and on-demand nitrogen and 300-bar with cylinder storage. Each comes in different sizes and with a wide range of accessories to meet your specific needs.

The PPNG skid HE will also reduce your operational costs. Compared to other nitrogen packages, you save 30% on energy costs. That’s because efficiency is built-in in all the skid’s components, from the Variable Speed Drive compressor, the highly efficient booster, to the nitrogen generator with optimized PSA technology.

The PPNG skid HE is the preferred nitrogen solution for laser cutting and other high pressure applications that require high uptime, purity, flow, and gas quality.
